Here is a detailed breakdown of the Honda 100 hp outboard (typically the BF100 model) — its description, key features, motor specifications, and standard features — based on Honda’s published data. If you have a specific year, variant, or region (e.g. BF100A1, L-type, etc.), I can refine further.
Description

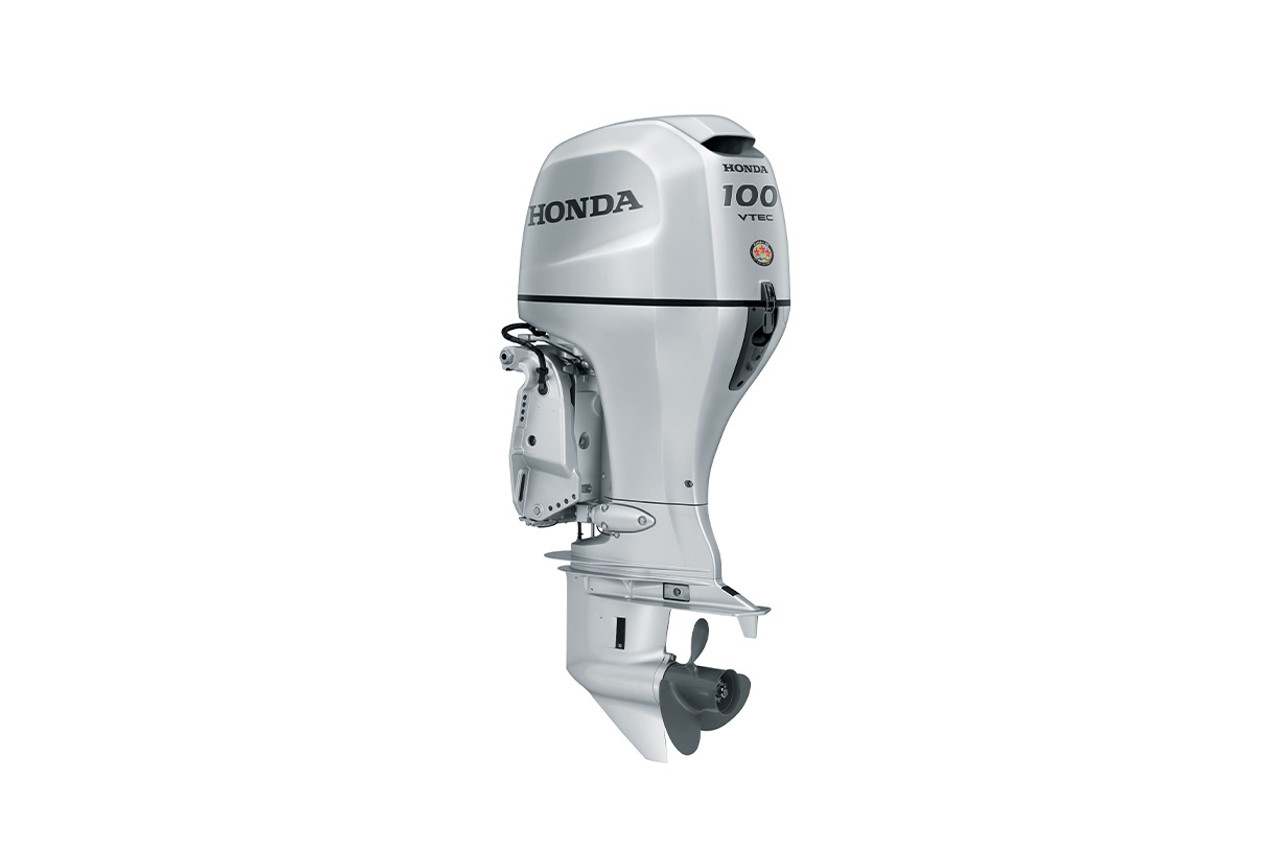

The Honda 100 hp outboard, commonly known as the Honda BF100, is a mid-range, four-stroke outboard engine designed for recreational and light commercial use. It combines Honda’s automotive-derived technologies with marine engineering to deliver a balance of power, fuel efficiency, and reliability.
It is part of Honda’s mid-power lineup (which includes 75 hp, 90 hp, and 100 hp) and is often used on small to mid-size boats (center consoles, sport fishing, utility applications).
One distinguishing characteristic of the BF100 is its adoption of variable valve timing (VTEC), lean burn control, BLAST acceleration assist, and other Honda “automotive-heritage” technologies adapted to marine use.
Key Features & Technology Highlights
Here are the standout features and design philosophies of the Honda 100 hp outboard:
| Feature | Description / Benefit |
|---|---|
| VTEC (Variable Valve Timing & Lift Electronic Control) | Acts to optimize valve timing and lift depending on engine rpm — mild cam operation at lower rpm, then switching to high-output cam lobes at higher rpm. This helps give a broad, flat torque curve and smoother power across the rpm range. |
| BLAST (Boosted Low Speed Torque) | When the throttle is “hammered down,” the system advances ignition timing close to the knock limit, boosting torque at low rpm to improve “hole shot” — i.e. getting the boat up on plane faster. |
| Lean Burn Control | Adjusts the air–fuel mixture depending on speed and load so that during cruise (often between ~2,000–4,500 rpm) the engine runs leaner (less fuel) for better efficiency. |
| PGM-FI (Programmed Fuel Injection) | Multi-port electronic fuel injection ensures precise fuel delivery, improved cold starts, good throttle response, and better fuel economy. |
| 3-Way Cooling System | Uses a multi-path cooling scheme to keep cylinder heads and engine internals cooler, which promotes durability under marine conditions. |
| High-Performance Gearcase | The gearcase is optimized to reduce drag, minimize spray/hull porpoising, and more efficiently translate prop shaft power to forward motion. |
| Corrosion Protection System | Honda applies a multi-layered paint and sealing approach (e.g. “4-Front Corrosion Protection”), uses sacrificial anodes, waterproof connectors, and other protective elements to resist saltwater corrosion. |
| Engine Alert / Monitoring Systems | The “Engine Alert System” monitors vital engine functions (overheating, low oil pressure, over-revving, battery, water in fuel, etc.), and warns the operator or reduces engine power to protect the engine. |
| On-board Connectivity / NMEA 2000 | The BF100 is NMEA 2000 certified, meaning it can interface with marine electronics (e.g. engine displays, GPS, sonar) via standard networking protocols. |
| High Output Alternator / Charging | Uses a neodymium magnet flywheel design to generate a total of ~44 amps, of which ~35 amps is available for charging accessories (navigation, fish finder, lights). |
| Trim & Tilt | Standard power trim & tilt is provided to allow the operator to adjust the motor angle (trim) and lift the motor (tilt) for shallow water or transport. |
| Variable Speed Trolling (Tiller Models) | On tiller-handle versions, a push-button “troll speed” control allows fine rpm adjustment (in 50 rpm increments) between ~750–1,000 rpm. |
| Lightweight Design | Despite its power, Honda designs the BF100 to be relatively light for its class, helping with boat weight balance and efficiency. |
Motor Specifications
Here are typical specifications for the Honda 100 hp outboard (BF100 / BF100A1 / L-type variants). These reflect published data; slight variations may exist based on regional models, year, or variant.
| Specification | Value / Detail |
|---|---|
| Engine type / configuration | 4-stroke, inline 4-cylinder, SOHC (Single Overhead Cam), 16 valves |
| Displacement | 1,496 cc (≈ 91.4 cubic inches) |
| Bore × Stroke | 73 mm × 89.4 mm (≈ 3.0 in × 3.5 in) |
| Rated Power | 100 hp at 5,900 rpm |
| Full Throttle RPM Range | 5,500 – 6,300 rpm |
| Compression Ratio | 9.7 : 1 (Honda News) |
| Fuel System | Multi-port electronic fuel injection (PGM-FI) |
| Ignition System | MicroComputer-programmed ignition |
| Lubrication | Wet sump lubrication system |
| Cooling System | Water-cooled (3-way cooling) |
| Gear Ratio | 2.33 : 1 |
| Shift (Gear Selection) | Forward – Neutral – Reverse (F-N-R) |
| Alternator / Charging Output | 44 amps total, ~35 amps available for battery charging |
| Trim Range | –4° to +16° |
| Tilt Range | Up to 68° |
| Shaft Length / Transom Height Options | Commonly 20 in (L-type) or 25 in (X-type) versions |
| Dry Weight | ~163 kg (359 lbs) for the L-type; ~166 kg (365 lbs) for X-type |
| Overall Width | ~480 mm (≈ 18.9 in) |
Standard Features
When you purchase a Honda 100 hp outboard, it typically comes with a set of standard (included) features and accessories. Here are some of them:
- Power Trim & Tilt (standard) — for adjusting motor angle and raising/lowering the engine.
- Engine Alert System — monitors critical parameters (overheat, oil pressure, battery, over-rev, etc.) and warns or intervenes to protect the engine.
- High Output Alternator / Charging — 44 amps total, 35 amps for battery and accessories.
- Fresh Water Flush Port — allows flushing of salt, debris from circuits to reduce corrosion.
- Sacrificial Anodes and Corrosion Protection — protective coatings, anodes, and sealing to resist marine corrosion.
- NMEA 2000 Capability — to interface with marine electronics out of the box.
- Owner’s Manual and Documentation — basic manual, wiring diagrams, etc.
- Warranty Coverage — Honda’s “True 5” non-declining limited factory warranty (5 years for recreational use) is normally included.
